Description

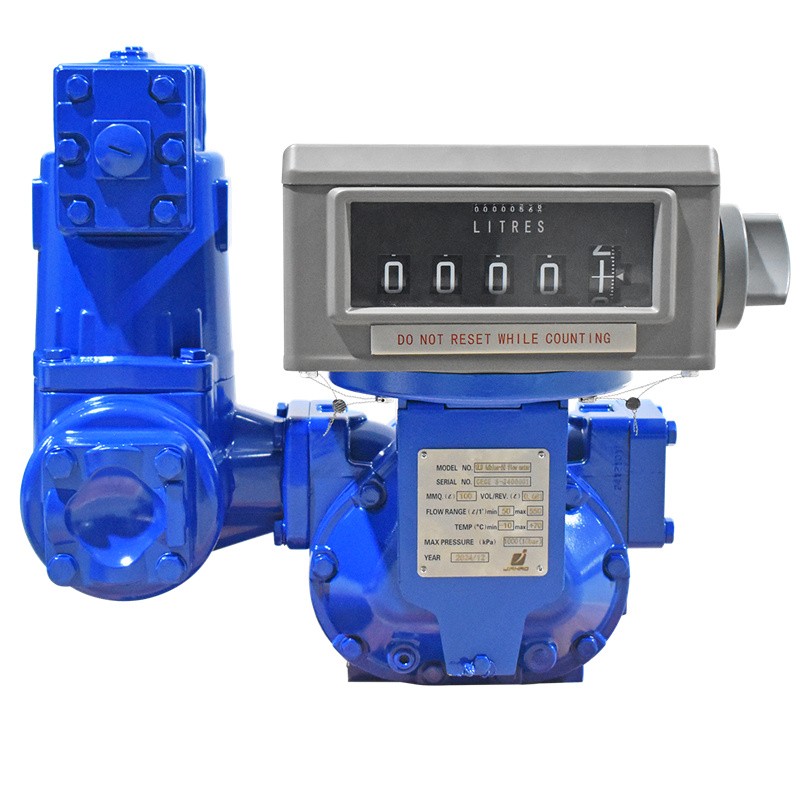

AdBlue/DEF Series M meter Bulk Flowmeter reliable and accurate
The M Series Flow meter is a positive displacement liquid Flow meter. It is designed for liquid measurement in transmission and process control. Due to its design, it is easy to maintain and can be used in a variety of applications.
The M Series rotary flow meter has a simple and efficient design and consists of a housing and three rotors that rotate synchronously in a measuring chamber.
Since there is no metal-to-metal contact in the chamber, there is no wear, which eliminates accuracy degradation and extends service life.
The rotors consist of bearings inserted into two bearing plates, and each rotor shaft has a timing gear at the end. The timed rotation between each rotor is then transmitted to the register through a calibrated regulator, providing consistent and superior accuracy measurements.
Features
It has a built-in air eliminator.
The excellent stepless adjustment device allows for fine adjustment of the meter.
High accuracy and repeatability over the widest flow range, excellent accuracy at constant flow;
Low maintenance, no metal-to-metal contact in the measuring chamber, long service life;
High accuracy regardless of pressure fluctuations, temperature changes, viscosity;
Stainless steel body, suitable for AdBlue/DEF applications;
Standard measurement units are litres/US gallons/Imperial gallons (please ask when ordering);
Available in pulser version;
Includes a filter with a mesh size of 80/170 μm (micrometers).
Optional
Pulse generator
GE · Electronic console
GK-7Plus · Own consumption controller with telematic transport
Preset and automatic stop
Ticket printer
M-50 INOX · High flow mechanical INOX flowmeter
32745-CF00100
Flow rate: 55-550 l/min
Capacity per round: 0.681 L
Dimensions: 2"
Operating temperature: -40 ºC · 71 ºC
Maximum pressure: 10 bar
Accuracy: ±0.2 %
Repeatability: < 0.07 %
Packaging dimensions: 510x460x490 mm (LxWxH)
Gross weight: 28 kg
