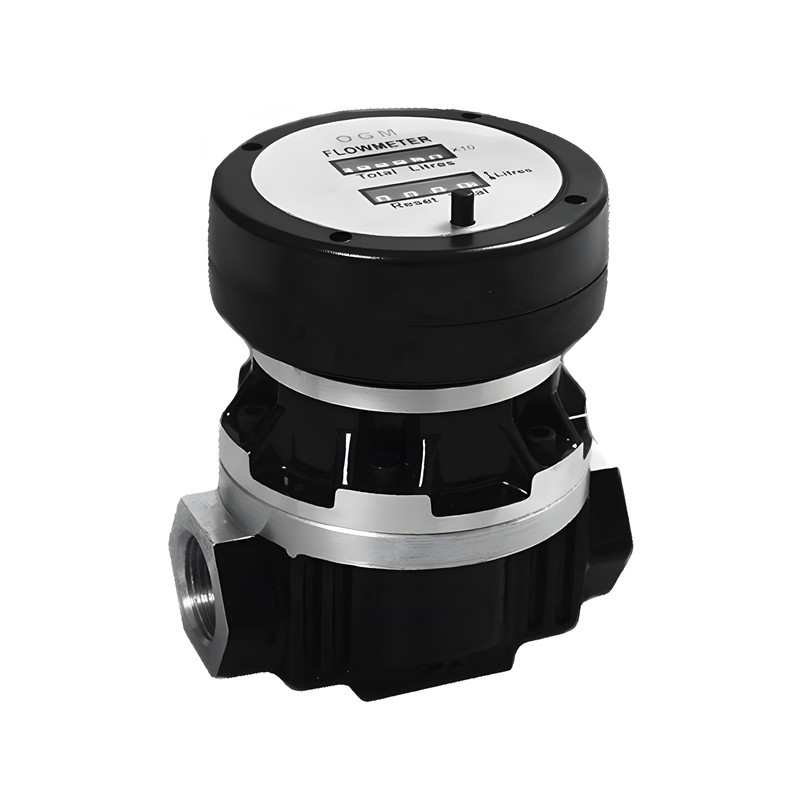

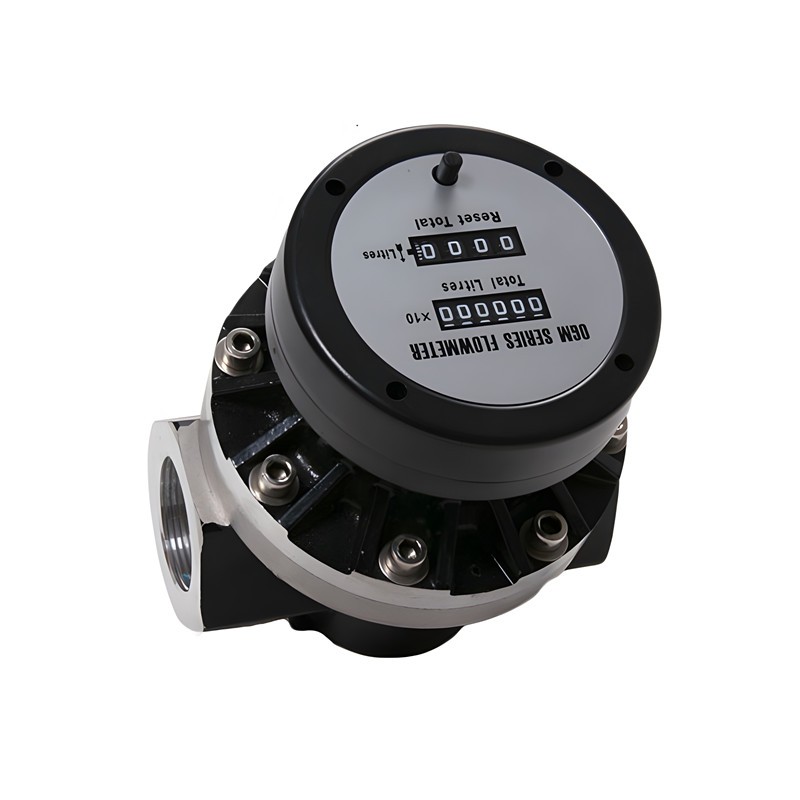

High Accuracy OGM Oval Gear Digital Flow meter 1.5"
OGM-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying in the petroleum,chemical,food industry,etc.
Model：
OGM-A-25
OGM-A-40
OGM-A-50
Size：
1"
1/1/2"
2"
Min.Flow Rate：
20L/min
25L/min
30L/min
Max.Flow Rate：
120L/min
250L/min
300L/min
Accueacy：
±0.5%
±0.5%
±0.5%
Repeatability：
≤0.03%
≤0.03%
≤0.03%
Max.Viscosity：
1000CPS
1000CPS
1000CPS
Max.Operating Pressuer：
3.4MPa
1.8MPa
1.8MPa
